If you cut a lot of dovetails in 1/2 and thinner material, then this is a great tool for the job. It's thin kerf makes for quick work and leaves a clean cut. This saw comes with either a straight saw plate or tapered. (note, this is tapered from heal to toe and not taper ground) All measurements are +/- 1/8".
Our saw plates are made from 1095 spring steel, hardened and tempered to Rc 48-51. Plates are deblued, but not sanded or polished, expect minor scratches from material handling. Wet/dry sandpaper can be used to remove these and take it to the level of finish you like. The teeth are punched but not sharpened or set. Rip teeth are punched with approximately five degrees of rake, crosscut teeth are at fifteen degrees.
This Kit will allow you to quickly build a good daily user or with some more time you can make an heirloom quality saw.

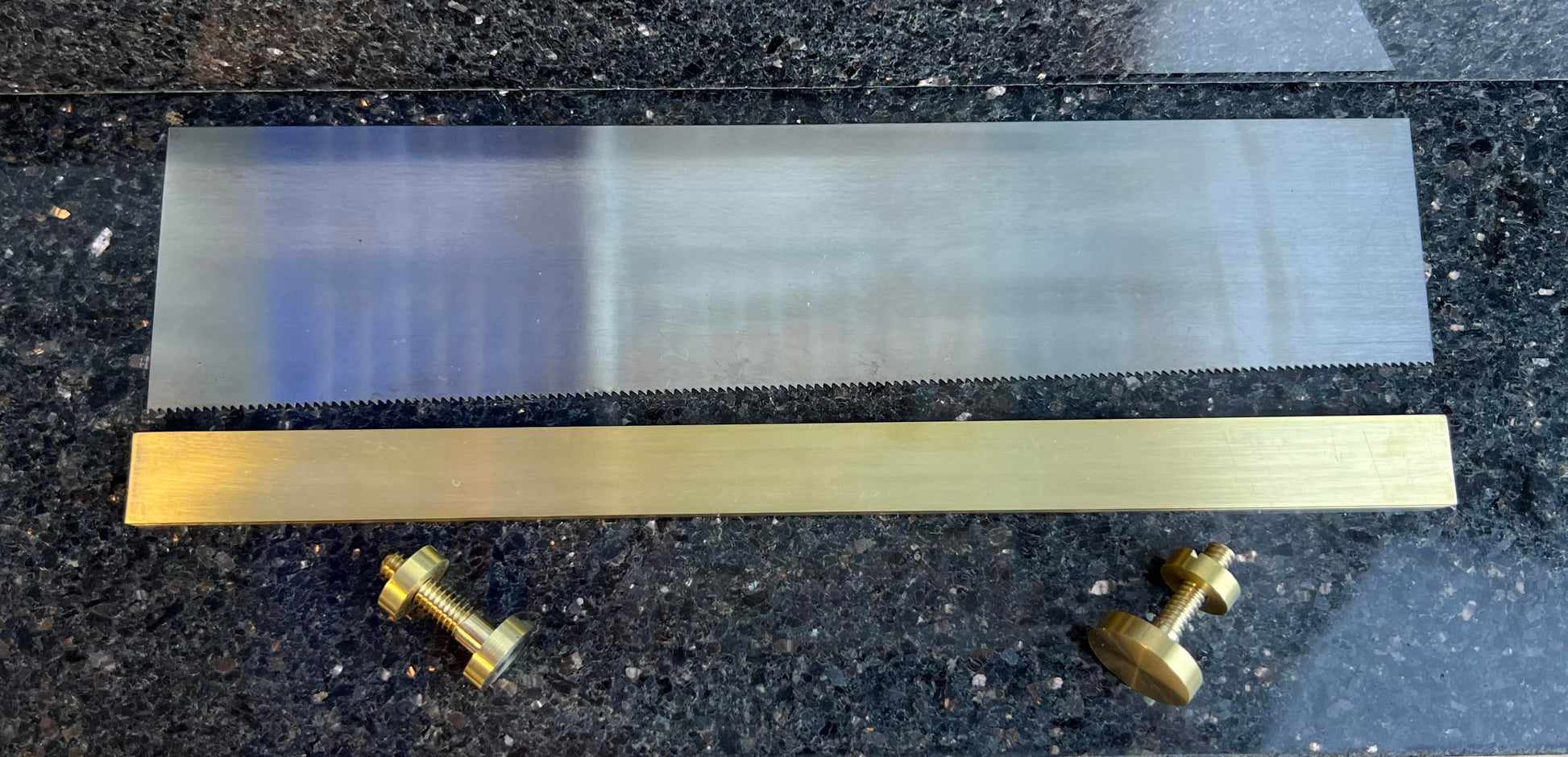

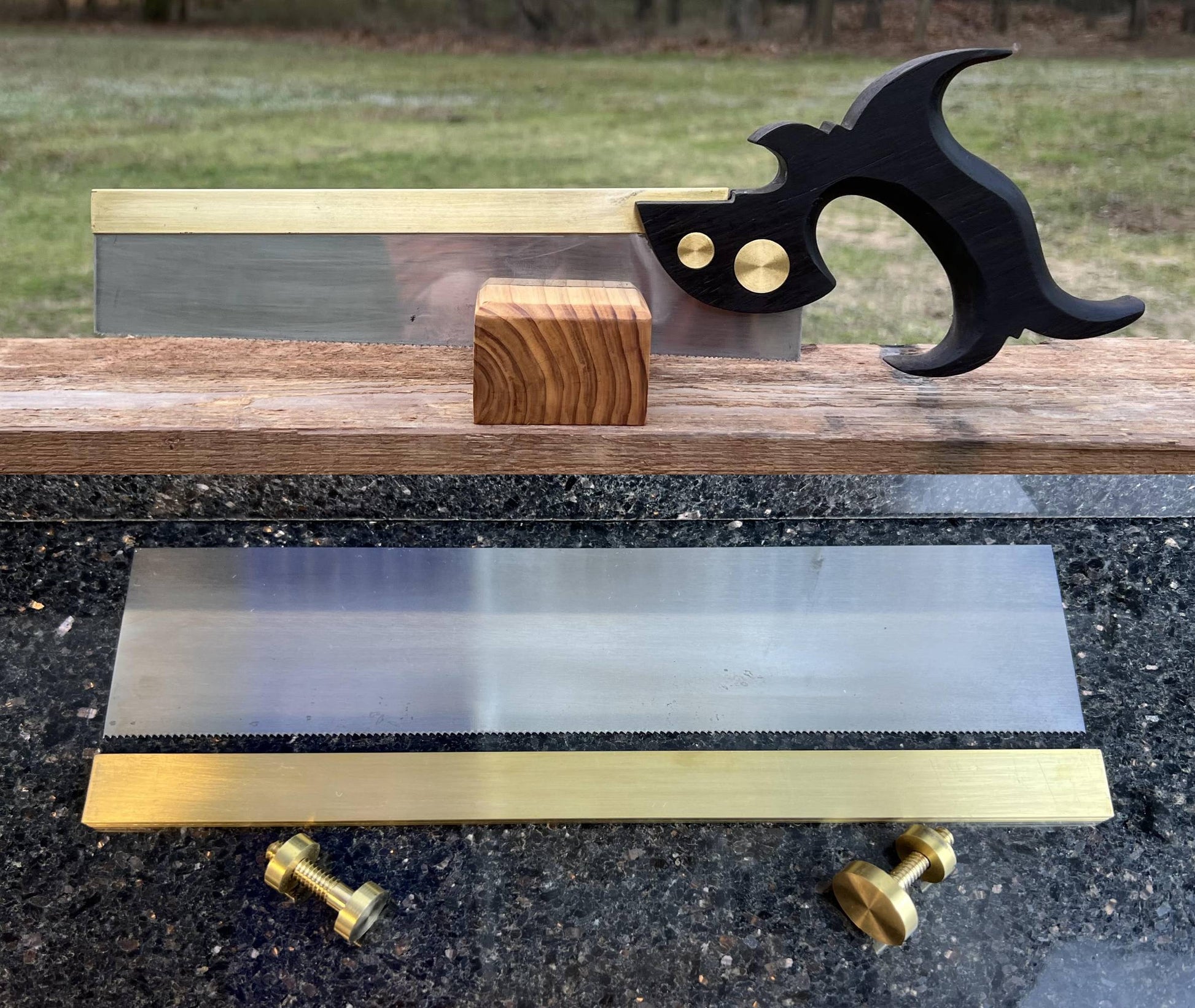

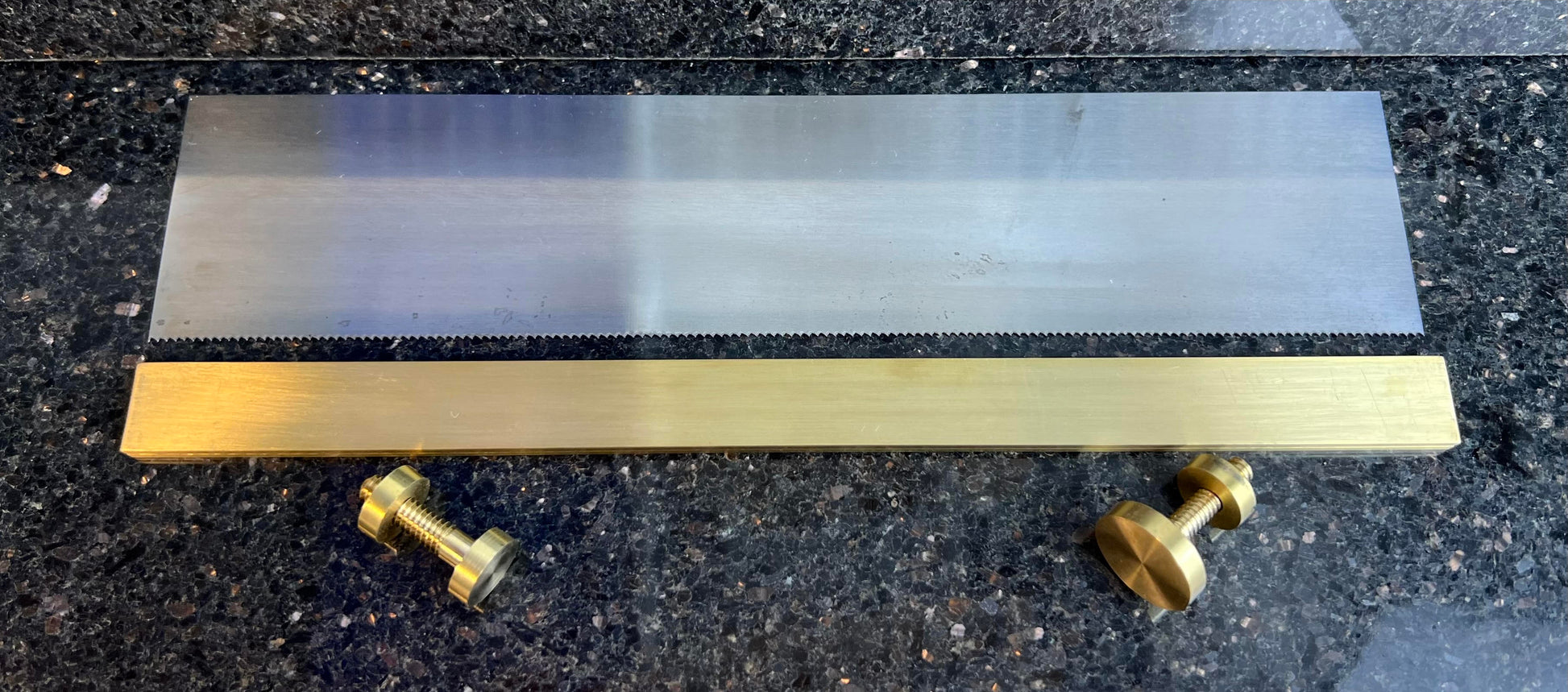

Kit Includes
Saw Plate - Straight L-9" H-2" W-.015" 16 TPI
Taper L-9" H-2" to 1.85: W-.015" 16 TPI
Saw Back - L-9" H-5/8" W-3/16"
Saw Bolts - ( one .75' medallion and one .50" saw bolt )
Handle plans including one Medium and one Large drawing.
